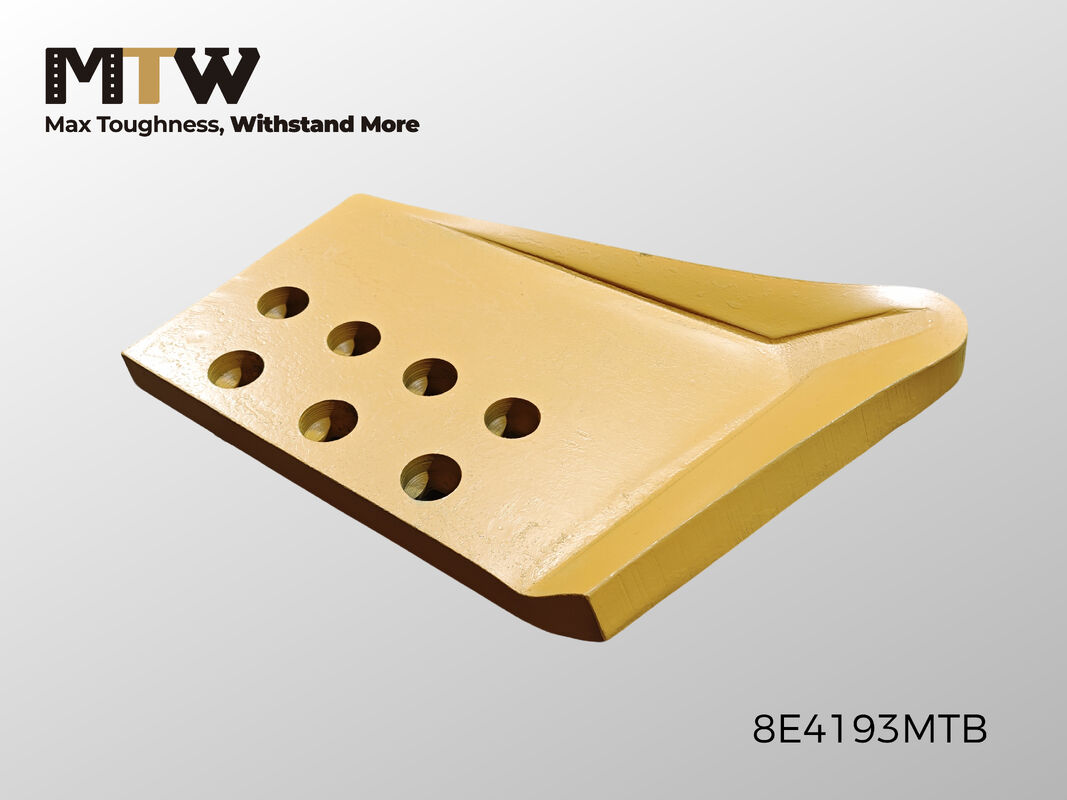

8E-4193 HCEB End Bit 40×403×597 7 Holes Heavy Duty Bulldozer End Bit
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Model Number: | 8E-4193 Bulldozer End Bit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Packaging Details: | plywood pallet |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| Product Name: | 8E-4193 Bulldozer End Bit | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size: | HCEB 40X403X597 |
| Part Number: | 8E-4193 | Weight: | 57.6KG |
| Highlight: | MTW dozer end bits,Dozer cutting edge wear parts,8E-4193 end bits with warranty |
||
Product Description
The 8E-4193 HCEB End Bit is a heavy-duty wear part designed for bulldozer blades operating in mining, quarrying, construction, and earthmoving applications. Manufactured from high-quality heat-treated boron steel or high-carbon steel, this heavy-duty end bit provides superior wear resistance, impact strength, and extended service life in harsh working conditions.
With dimensions of 40*403*597 mm, a 7-hole mounting configuration, and a weight of 57.6 kg, the 8E-4193 end bit delivers reliable blade edge protection while reducing maintenance costs and machine downtime.
- Heavy-duty HCEB end bit design
- Manufactured from premium boron steel or alloy steel
- Excellent wear resistance and impact toughness
- Precision-machined mounting holes for easy installation
- Heat-treated for longer service life
- Suitable for mining, quarry, and construction applications
- OEM-quality replacement bulldozer wear part
| Parameter | Specification |
|---|---|
| Part Number | 8E-4193 |
| Blade Position | End Bit |
| Quantity Required | 1 |
| Blade Type | HCEB |
| Thickness | 40 mm |
| Width | 403 mm |
| Length | 597 mm |
| Total Holes | 7 |
| Weight | 57.6 kg |
| Material | Heat-treated Boron Steel / High Carbon Steel |
| Application | Bulldozer Blade Wear Parts |
The 8E-4193 HCEB End Bit is widely used for:
- Bulldozers
- Mining equipment
- Quarry machinery
- Earthmoving equipment
- Heavy construction machinery
- High-abrasion working environments
- OEM fit and performance
- High wear resistance for longer service life
- Reduced downtime and maintenance costs
- Strict quality control standards
- Factory-direct pricing
- Worldwide shipping available
A: The dimensions are 40 mm thickness * 403 mm width * 597 mm length.
A: It features 7 precision-machined mounting holes.
A: The end bit is produced from heat-treated boron steel or high-carbon steel for maximum wear resistance.
A: It is suitable for bulldozers and heavy earthmoving equipment used in mining, quarrying, and construction projects.
