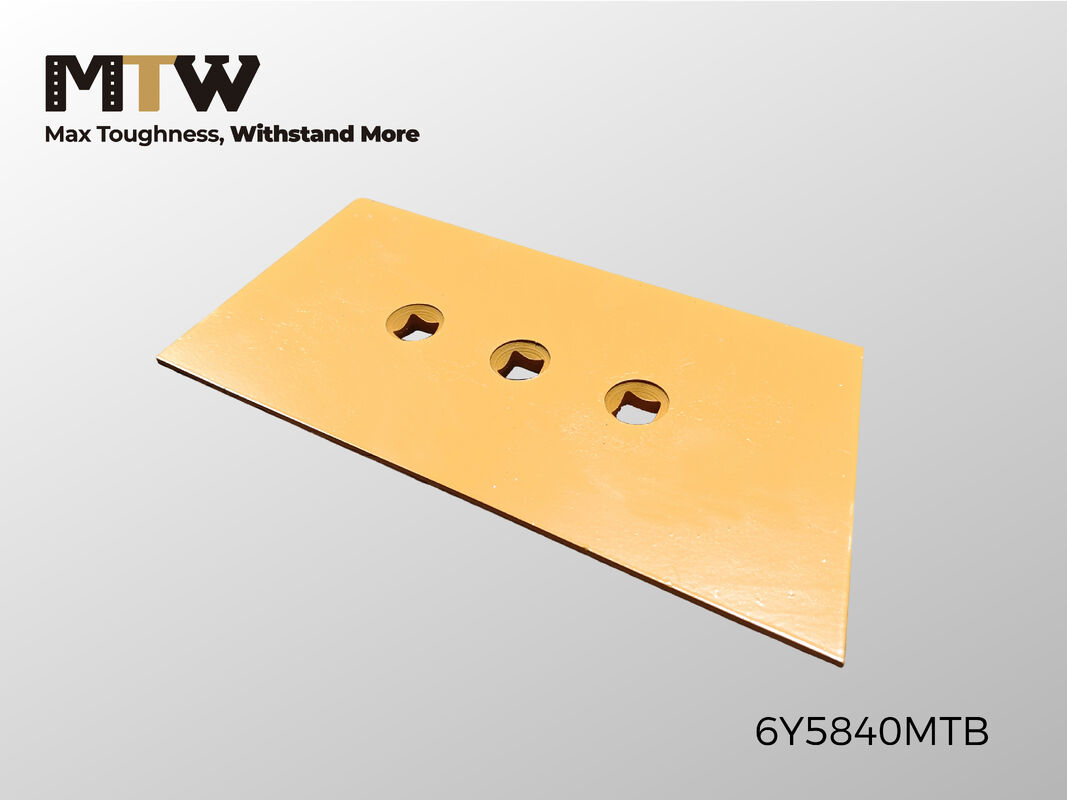

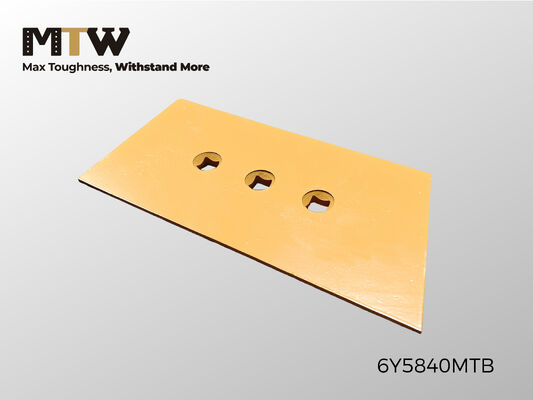

6Y-5840 LCEB End Bit 16×165×352 3 Holes Left-Hand Bulldozer End Bit
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Model Number: | 6Y-5840 Bulldozer End Bit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Packaging Details: | plywood pallet |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| Product Name: | 6Y-5840 Bulldozer End Bit | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size: | LCEB 16X165X352 |
| Part Number: | 6Y-5840 | Weight: | 5.9KG |
| Highlight: | MTW dozer end bits,6Y-5840 wear parts,Dozer cutting edge end bits |
||
Product Description
The 6Y-5840 LCEB End Bit is a standard-duty level-cut bulldozer wear part designed to provide reliable blade edge protection and improved grading performance. Manufactured from premium heat-treated boron steel, this Level Cut End Bit offers excellent wear resistance, impact strength, and extended service life in construction, earthmoving, and grading applications.
Featuring a compact 16 mm thickness, 165 mm width, 352 mm overall length, and a 3-hole mounting configuration, the 6Y-5840 end bit ensures secure installation and dependable performance. This part is commonly used as a left-hand (LH) end bit on D3, D4, and D5 series bulldozers.
- LCEB (Level Cut End Bit) design
- Premium heat-treated boron steel construction
- Standard-duty wear resistance
- Precision-machined 3-hole mounting pattern
- Excellent fit and easy installation
- Suitable for grading and earthmoving applications
- OEM-quality replacement wear part
| Parameter | Specification |
|---|---|
| Part Number | 6Y-5840 |
| Blade Position | End Bit (LH) |
| Qty Required | 1 |
| Blade Type | LCEB |
| Thickness | 16 mm |
| Width | 165 mm |
| Length | 352 mm |
| Total Holes | 3 |
| Weight | 5.9 kg |
| Material | Boron Steel |
| End Bit Type | Level Cut |
The 6Y-5840 LCEB End Bit is widely used on:
- D3 Series Dozers
- D4 Series Dozers
- D5 Series Dozers
- Track-Type Tractors
- Construction Equipment
- Land Grading and Site Preparation Projects
Compatible models include D3G, D3K, D4G, D4K, D5C, D5G, D5K and related machines.
- OEM-quality GET (Ground Engaging Tools)
- Heat-treated boron steel for longer wear life
- Precision hole alignment for easy installation
- Consistent hardness and toughness
- Factory-direct pricing
- Worldwide shipping available
A: The 6Y-5840 measures 16 mm × 165 mm × 352 mm and features a 3-hole mounting pattern.
A: The 6Y-5840 is a left-hand (LH) Level Cut End Bit. The matching right-hand part is 6Y-5839.
A: It is typically manufactured from heat-treated boron steel, providing excellent wear resistance and durability.
A: It is commonly used on D3, D4 and D5 series track-type tractors and bulldozers.
