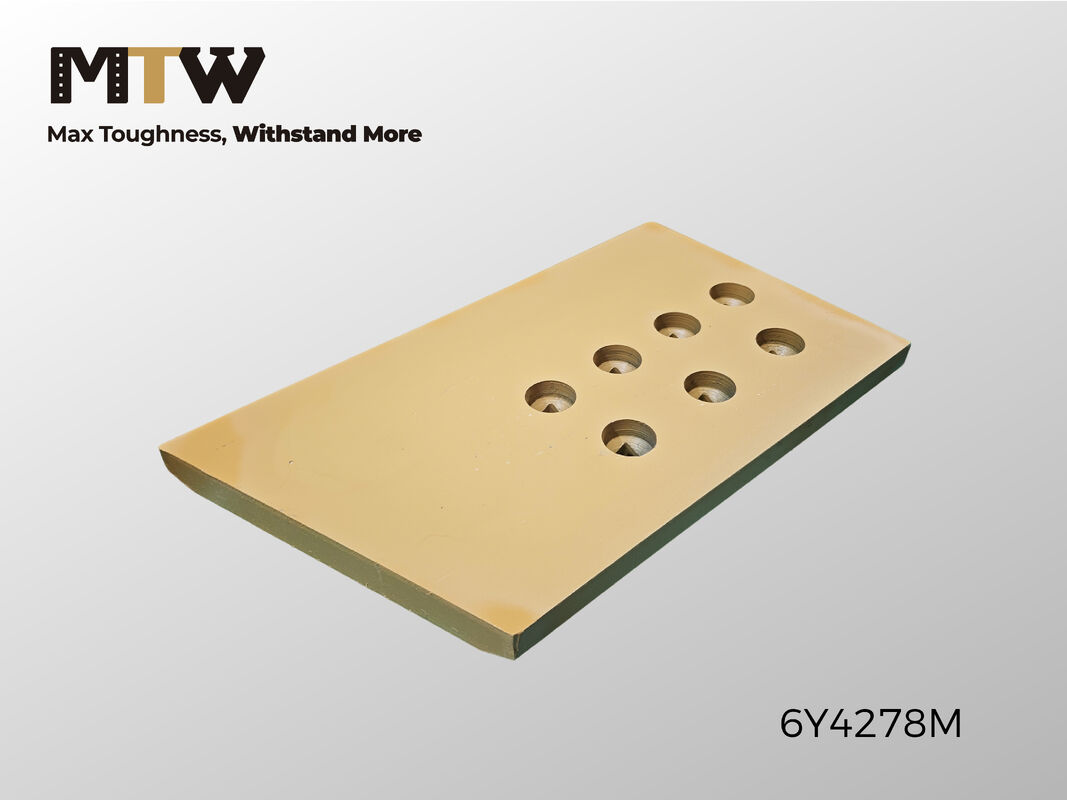

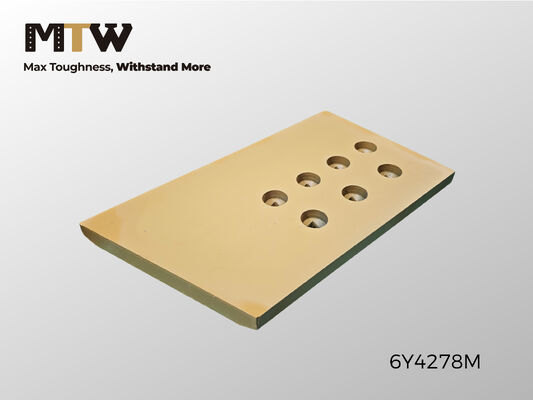

6Y-4278 LCEB End Bit 40×330×592 7 Holes Level Cut Bulldozer End Bit
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Model Number: | 6Y-4278 Bulldozer End Bit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Packaging Details: | plywood pallet |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| Product Name: | 6Y-4278 Bulldozer End Bit | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size: | LCEB 40X330X592 |
| Part Number: | 6Y-4278 | Weight: | 53.2KG |
| Highlight: | MTW dozer end bits,6Y-4278 wear parts,dozer cutting edge end bits |
||
Product Description
The 6Y-4278 LCEB End Bit is a premium heavy-duty bulldozer wear part designed to provide reliable blade corner protection and superior grading performance in demanding earthmoving and construction applications. Featuring a Level Cut End Bit (LCEB) design, this component helps maintain a smooth cutting edge while reducing wear on the main blade.
Manufactured from high-quality heat-treated boron steel or high-carbon alloy steel, the 6Y-4278 end bit delivers exceptional wear resistance, impact strength, and long service life. With dimensions of 40×330×592 mm, a 7-hole mounting configuration, and a weight of 53.2 kg, it is ideal for medium to large bulldozers operating in abrasive environments.
- LCEB (Level Cut End Bit) design
- Heavy-duty 40 mm thick construction
- Premium heat-treated boron steel
- Excellent wear resistance and toughness
- Precision-machined 7-hole mounting pattern
- OEM-quality fit and performance
- Extended service life in demanding conditions
| Parameter | Specification |
|---|---|
| Part Number | 6Y-4278 |
| Blade Position | End Bit |
| Qty Required | 1 |
| Blade Type | LCEB |
| Thickness | 40 mm |
| Width | 330 mm |
| Length | 592 mm |
| Total Holes | 7 |
| Weight | 53.2 kg |
| Material | Heat-Treated Boron Steel / High Carbon Steel |
| Application | Bulldozer Blade Wear Parts |
The 6Y-4278 LCEB End Bit is widely used on:
- Bulldozers
- Track-Type Tractors
- Earthmoving Equipment
- Construction Machinery
- Quarry Operations
- Land Development Projects
Designed to provide optimal blade protection and efficient grading performance in high-abrasion working environments.
- OEM-quality Ground Engaging Tools (GET)
- Superior wear resistance and durability
- Precision manufacturing for accurate fitment
- Reduced maintenance costs and downtime
- Strict quality inspection standards
- Competitive factory-direct pricing
- Fast global shipping and OEM support
A: The dimensions are 40 mm thickness × 330 mm width × 592 mm length.
A: The end bit features 7 precision-machined mounting holes.
A: LCEB stands for Level Cut End Bit, designed to provide smooth grading performance and protect the blade corners from excessive wear.
A: The 6Y-4278 is manufactured from heat-treated boron steel or high-carbon alloy steel for maximum wear resistance and durability.
