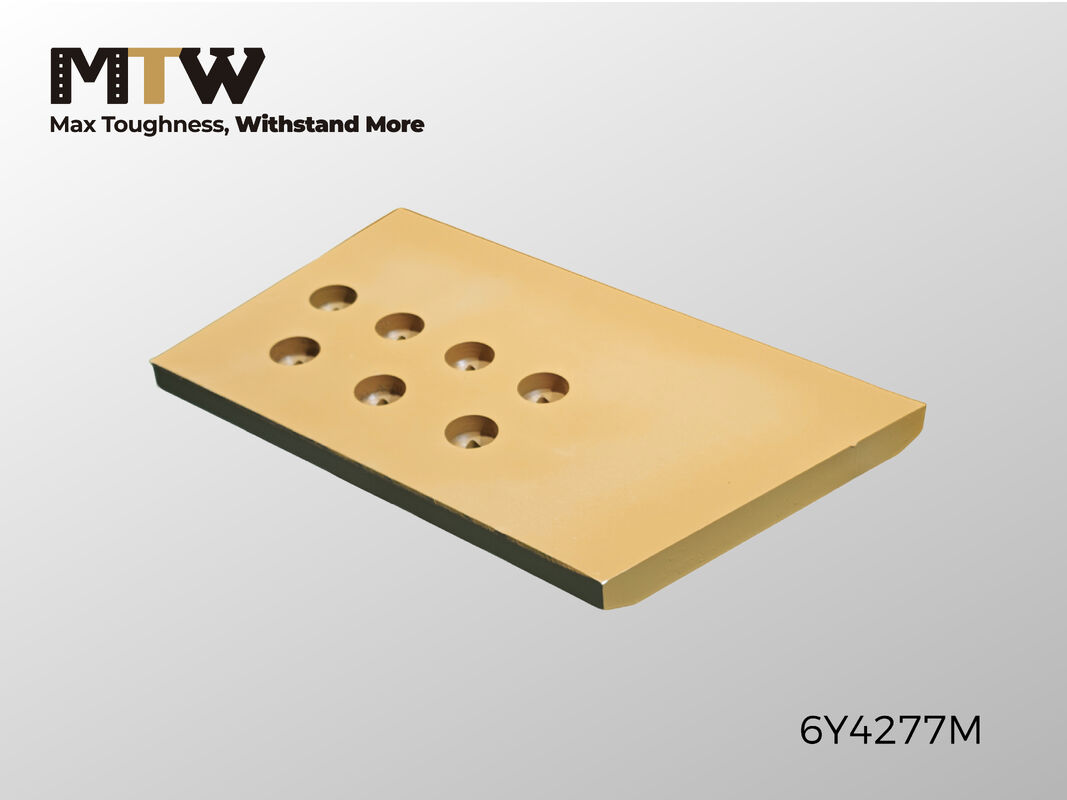

6Y-4277 LCEB End Bit 40×330×592 7 Holes Level Cut Bulldozer End Bit
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Model Number: | 6Y-4277 Bulldozer End Bit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Packaging Details: | plywood pallet |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| Product Name: | 6Y-4277 Bulldozer End Bit | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size: | LCEB 40X330X592 |
| Part Number: | 6Y-4277 | Weight: | 53.2KG |
| Highlight: | MTW dozer end bits,6Y-4277 wear parts,Dozer cutting edge end bits |
||
Product Description
The 6Y-4277 LCEB End Bit is a heavy-duty level cut wear part designed to protect bulldozer blade corners and maintain efficient grading performance in demanding construction, earthmoving, quarry, and mining applications. Engineered with a Level Cut End Bit (LCEB) profile, this end bit helps reduce blade wear while delivering a smooth and consistent cutting edge.
Manufactured from premium heat-treated boron steel or high-carbon alloy steel, the 6Y-4277 end bit provides outstanding wear resistance, impact strength, and long service life. Featuring dimensions of 40×330×592 mm, a 7-hole mounting configuration, and a weight of 53.2 kg, it offers reliable performance in abrasive operating conditions.
The 6Y-4277 is commonly paired with 6Y-4278 to form a complete left-hand and right-hand end bit set for bulldozer blade protection systems.
- LCEB (Level Cut End Bit) design
- Heavy-duty 40 mm thick construction
- Premium heat-treated boron steel
- Excellent wear and impact resistance
- Precision-machined 7-hole mounting pattern
- OEM-quality fit and performance
- Long service life in high-abrasion environments
| Parameter | Specification |
|---|---|
| Part Number | 6Y-4277 |
| Blade Position | End Bit |
| Qty Required | 1 |
| Blade Type | LCEB |
| Thickness | 40 mm |
| Width | 330 mm |
| Length | 592 mm |
| Total Holes | 7 |
| Weight | 53.2 kg |
| Material | Heat-Treated Boron Steel / High Carbon Steel |
| Application | Bulldozer Blade Wear Parts |
The 6Y-4277 LCEB End Bit is suitable for:
- Bulldozers
- Track-Type Tractors
- Earthmoving Equipment
- Construction Machinery
- Quarry Operations
- Mining Applications
- Land Development and Site Preparation
Designed to deliver superior blade protection and extended wear life under demanding working conditions.
- OEM-quality Ground Engaging Tools (GET)
- Superior wear resistance and durability
- Precision manufacturing for accurate installation
- Reduced maintenance and replacement costs
- Strict quality inspection standards
- Competitive factory-direct pricing
- Fast worldwide shipping
A: The dimensions are 40 mm thickness × 330 mm width × 592 mm length.
A: It features 7 precision-machined mounting holes.
A: LCEB stands for Level Cut End Bit, designed to improve grading performance while protecting bulldozer blade corners from excessive wear.
A: The 6Y-4277 is manufactured from heat-treated boron steel or high-carbon alloy steel for maximum durability and wear resistance.
