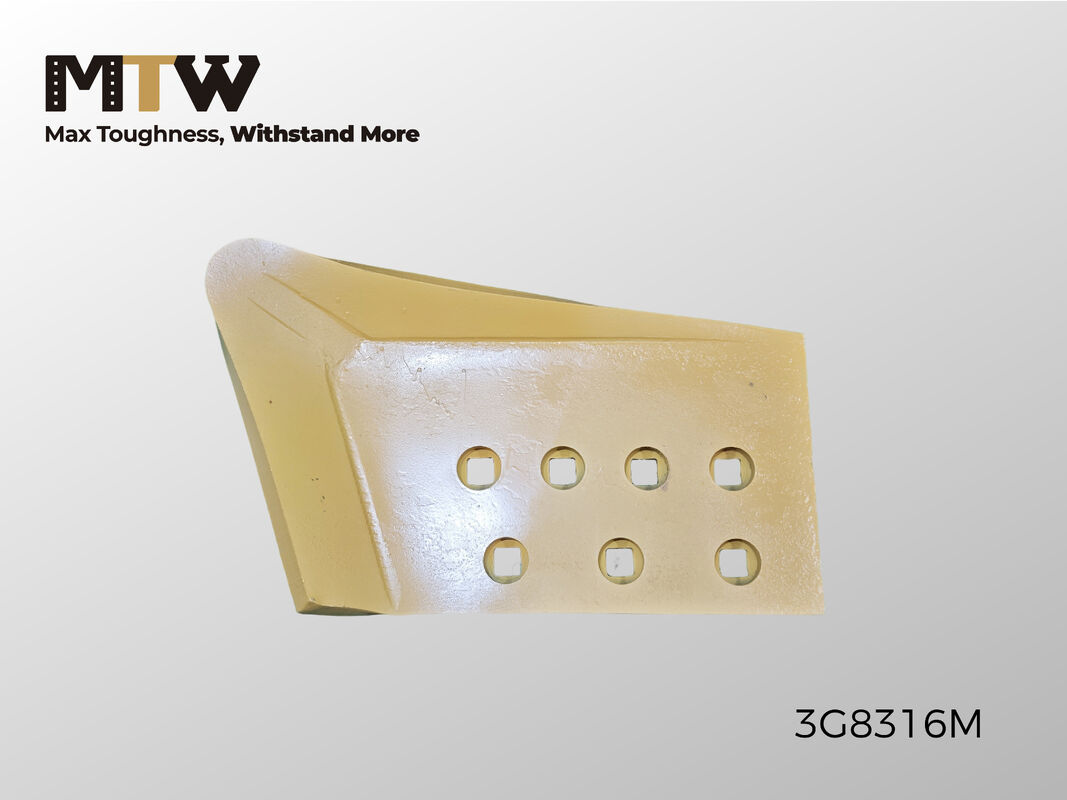

3G8316 HCEB End Bit 32×333×549 7 Holes Heavy Duty Bulldozer End Bit
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Model Number: | 3G8316 Bulldozer End Bit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Packaging Details: | plywood pallet |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| Product Name: | 3G8316 Bulldozer End Bit | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size: | HCEB 32X333X549 |
| Part Number: | 3G8316 | Weight: | 36.3KG |
| Highlight: | MTW end bits wear parts,Dozer end bits cutting edges,3G8316 end bits replacement |
||
Product Description
The 3G8316 HCEB End Bit is a heavy-duty bulldozer wear component designed to provide maximum blade corner protection and exceptional wear life in demanding construction, mining, quarry, and earthmoving applications. Featuring a Heavy Duty Cutting Edge Bit (HCEB) design, this end bit helps reduce blade wear, improve operational efficiency, and lower maintenance costs.
Manufactured from premium heat-treated boron steel or high-carbon alloy steel, the 3G8316 end bit delivers outstanding abrasion resistance, impact strength, and durability. With dimensions of 32×333×549 mm, a 7-hole mounting configuration, and a weight of 36.3 kg, it is built to withstand severe working conditions and heavy material handling operations.
- HCEB (Heavy Duty Cutting Edge Bit) design
- Heat-treated boron steel for superior wear resistance
- Heavy-duty construction for extended service life
- Precision-machined 7-hole mounting pattern
- Excellent impact toughness and durability
- OEM-quality fit and performance
- Suitable for mining and construction environments
| Parameter | Specification |
|---|---|
| Part Number | 3G8316 |
| Blade Position | End Bit |
| Qty Required | 1 |
| Blade Type | HCEB |
| Thickness | 32 mm |
| Width | 333 mm |
| Length | 549 mm |
| Total Holes | 7 |
| Weight | 36.3 kg |
| Material | Heat-Treated Boron Steel / High Carbon Steel |
| Application | Bulldozer Blade Wear Parts |
The 3G8316 HCEB End Bit is suitable for:
- Bulldozers
- Track-Type Tractors
- Mining Equipment
- Quarry Machinery
- Heavy Earthmoving Equipment
- Road Construction Projects
- Land Clearing Operations
Designed to provide long-lasting blade protection and optimal machine performance in abrasive environments.
- OEM-quality Ground Engaging Tools (GET)
- Superior wear resistance and impact strength
- Precision manufacturing for accurate installation
- Reduced machine downtime and maintenance costs
- Strict quality inspection standards
- Factory-direct pricing
- Worldwide shipping and OEM services available
A: The dimensions are 32 mm thickness × 333 mm width × 549 mm length.
A: The end bit features 7 precision-machined mounting holes.
A: The 3G8316 is manufactured from heat-treated boron steel or high-carbon alloy steel for superior durability and wear resistance.
A: It is suitable for bulldozers used in mining, quarrying, construction, and heavy earthmoving operations.
