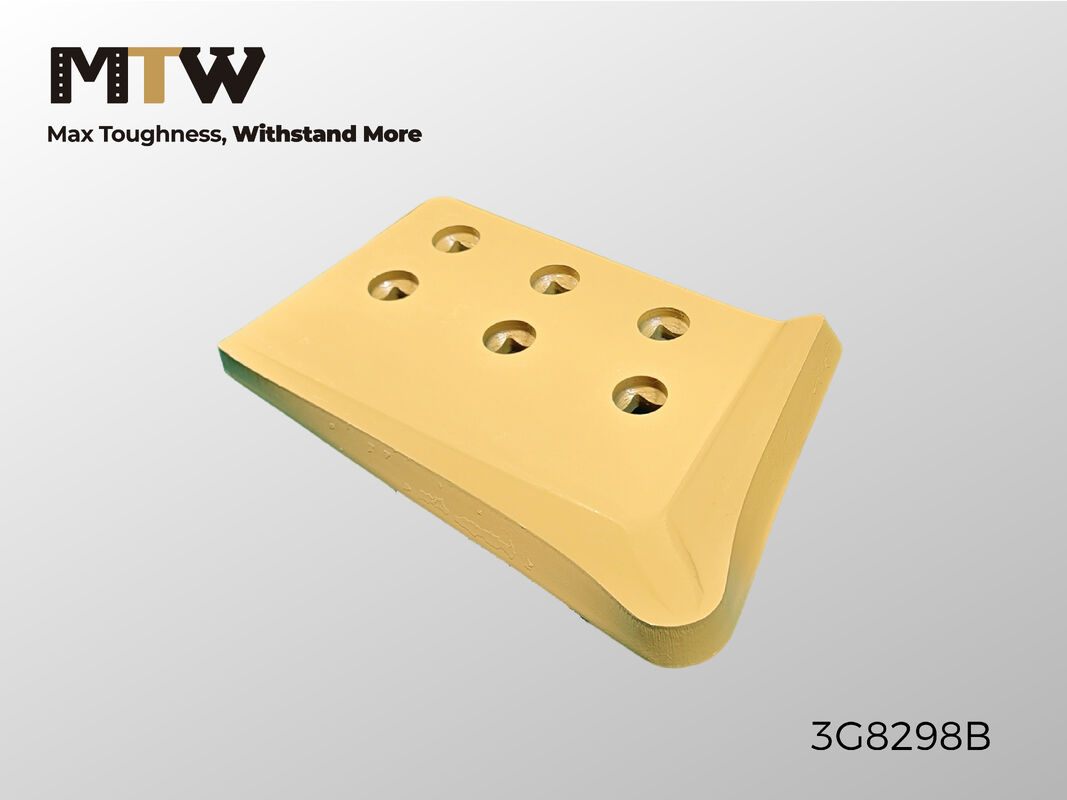

3G8298 HCEB End Bit 25×262×392 6 Holes Heavy Duty Bulldozer End Bit
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Model Number: | 3G8298 Bulldozer End Bit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Packaging Details: | plywood pallet |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| Product Name: | 3G8298 HCEB End Bit 25×262×392 6 Holes Heavy Duty Bulldozer End Bit | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size: | HCEB 25X262X392 |
| Part Number: | 3G8298 | Weight: | 16.3KG |
| Highlight: | MTW end bits wear parts,Dozer end bits cutting edges,3G8298 end bits replacement |
||
Product Description
The 3G8298 HCEB End Bit is a high-performance heavy-duty bulldozer wear part designed to protect blade corners from excessive wear and impact damage during demanding earthmoving, construction, quarry, and mining operations. Featuring a Heavy Duty Cutting Edge Bit (HCEB) design, this end bit improves blade durability while maintaining efficient material penetration and grading performance.
Manufactured from premium heat-treated boron steel or high-carbon alloy steel, the 3G8298 end bit offers exceptional abrasion resistance, toughness, and long service life. With dimensions of 25*262*392 mm, a 6-hole mounting pattern, and a weight of 16.3 kg, it provides a reliable OEM-quality replacement solution for bulldozer blade systems.
The 3G8298 is typically supplied as part of a left-hand/right-hand end bit set for enhanced blade protection and balanced wear performance.
- HCEB (Heavy Duty Cutting Edge Bit) design
- Premium heat-treated boron steel construction
- Excellent wear resistance and impact toughness
- Precision-engineered 6-hole mounting configuration
- OEM-quality fit and performance
- Extended service life in abrasive environments
- Reduced machine downtime and maintenance costs
| Parameter | Specification |
|---|---|
| Part Number | 3G8298 |
| Blade Position | End Bit |
| Qty Required | 1 |
| Blade Type | HCEB |
| Thickness | 25 mm |
| Width | 262 mm |
| Length | 392 mm |
| Total Holes | 6 |
| Weight | 16.3 kg |
| Material | Heat-Treated Boron Steel / High Carbon Steel |
| Hardness | HB 470–520 (Typical) |
| Application | Bulldozer Blade Wear Parts |
The 3G8298 HCEB End Bit is suitable for:
- Bulldozers
- Track-Type Tractors
- Earthmoving Equipment
- Construction Machinery
- Quarry Operations
- Mining Equipment
- Road Construction Projects
Designed for heavy-duty applications requiring superior blade corner protection and wear resistance.
- Protects blade corners from premature wear
- Improves cutting and grading efficiency
- Reduces replacement frequency
- Enhances machine productivity
- Minimizes maintenance downtime
- Delivers long-lasting performance in harsh conditions
- Optimized HCEB profile for maximum wear life
- Heat-treated alloy steel for superior durability
- Excellent resistance to cracking and chipping
- Precision hole spacing for easy installation
- Suitable for high-impact and abrasive applications
A: The dimensions are 25 mm thickness * 262 mm width * 392 mm length.
A: The end bit features 6 precision-machined mounting holes.
A: It is manufactured from heat-treated boron steel or high-carbon alloy steel to provide excellent wear resistance and durability.
A: An HCEB end bit protects bulldozer blade corners from excessive wear and impact damage while improving overall blade service life.
