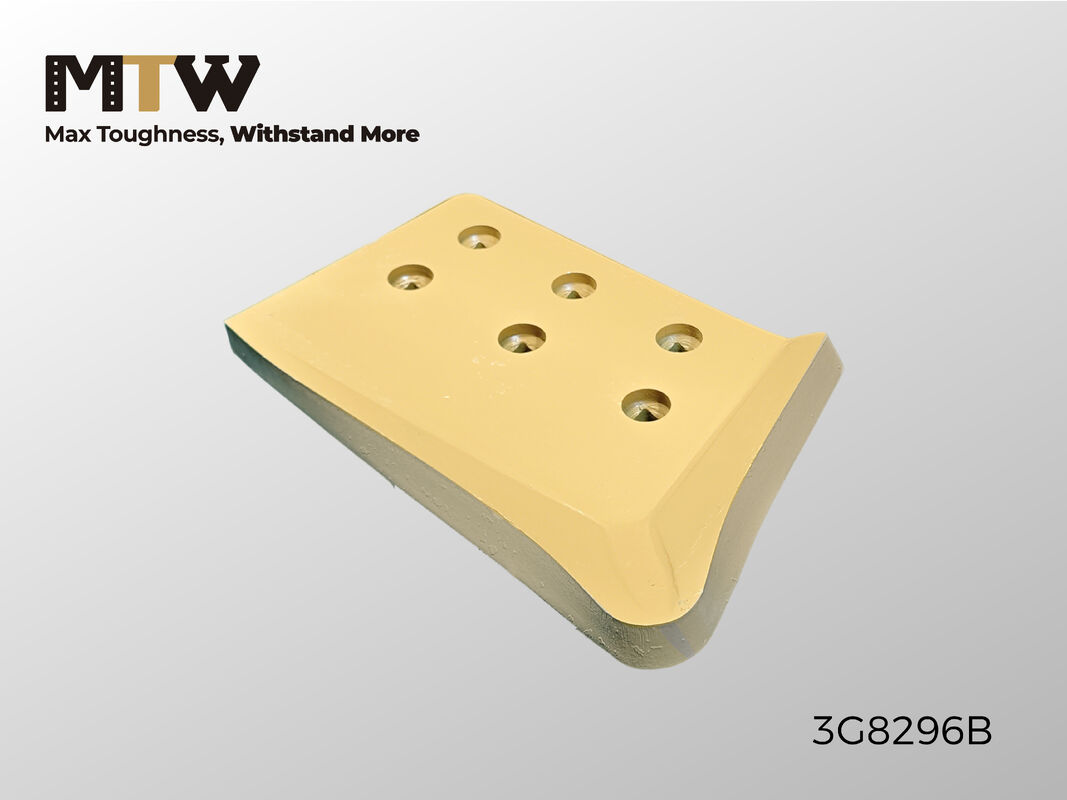

3G8296 HCEB End Bit 25×262×392 6 Holes Heavy Duty Bulldozer End Bit
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Model Number: | 3G8296 Bulldozer End Bit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Packaging Details: | plywood pallet |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| Product Name: | 3G8296 Bulldozer End Bit | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size: | HCEB 25X262X392 |
| Part Number: | 3G8296 | Weight: | 16.5KG |
| Highlight: | MTW dozer end bits,3G8296 wear parts,Dozer cutting edge end bits |
||
Product Description
The 3G8296 HCEB End Bit is a premium heavy-duty bulldozer wear part engineered to deliver exceptional blade corner protection and extended service life in harsh earthmoving, mining, quarrying, and construction environments. Designed with a Heavy Duty Cutting Edge Bit (HCEB) profile, this end bit helps minimize blade wear, improve cutting efficiency, and reduce maintenance costs.
Manufactured from high-quality heat-treated boron steel or alloy steel, the 3G8296 end bit provides excellent abrasion resistance and impact strength. With dimensions of 25×262×392 mm, a 6-hole mounting configuration, and a weight of 16.5 kg, it offers reliable OEM-quality performance in demanding applications.
- HCEB (Heavy Duty Cutting Edge Bit) design
- Premium heat-treated boron steel construction
- Excellent wear resistance and toughness
- Precision-machined 6-hole mounting pattern
- OEM-quality fit and easy installation
- Long service life in abrasive environments
- Reduced downtime and maintenance costs
| Parameter | Specification |
|---|---|
| Part Number | 3G8296 |
| Blade Position | End Bit |
| Qty Required | 1 |
| Blade Type | HCEB |
| Thickness | 25 mm |
| Width | 262 mm |
| Length | 392 mm |
| Total Holes | 6 |
| Weight | 16.5 kg |
| Material | Heat-Treated Boron Steel / Alloy Steel |
| Hardness | HB 470–520 (Typical) |
| Application | Bulldozer Blade Wear Parts |
The 3G8296 HCEB End Bit is suitable for:
- Bulldozers
- Track-Type Tractors
- Earthmoving Equipment
- Construction Machinery
- Mining Operations
- Quarry Equipment
- Road Building Projects
Designed to withstand high-impact and high-abrasion working conditions while maintaining superior blade protection.
- Protects blade corners from premature wear
- Extends cutting edge service life
- Improves machine productivity
- Reduces replacement frequency
- Enhances operating efficiency
- Lowers overall maintenance costs
- OEM-quality Ground Engaging Tools (GET)
- Advanced heat-treatment technology
- Precision manufacturing and hole alignment
- Superior hardness and impact resistance
- Strict quality control standards
- Competitive factory-direct pricing
- Worldwide shipping and OEM support
A: The dimensions are 25 mm thickness × 262 mm width × 392 mm length.
A: It features 6 precision-machined mounting holes.
A: The end bit is manufactured from heat-treated boron steel or alloy steel to ensure maximum wear resistance and durability.
A: It is ideal for bulldozers operating in construction, mining, quarrying, and heavy earthmoving environments.
