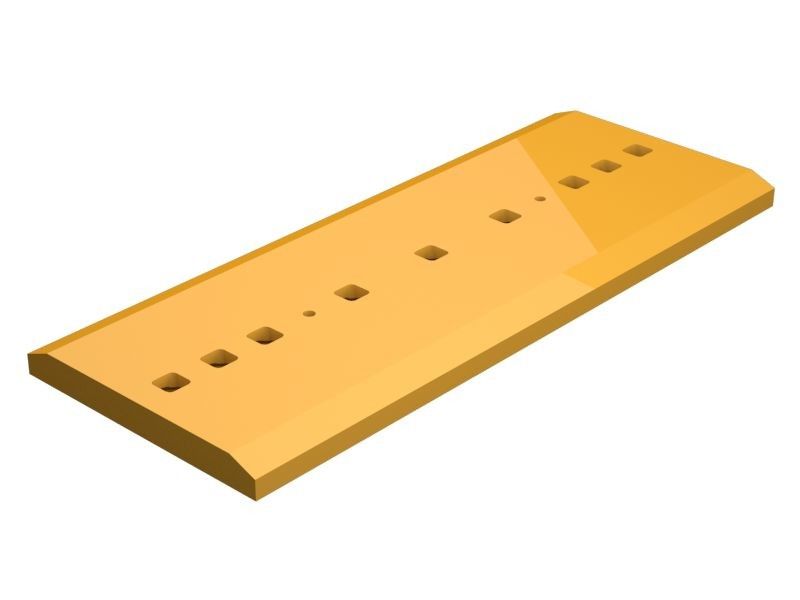

6Y0016 DBF Bulldozer Cutting Edge 45×406×1028mm Blade Wear Part 135.8KG
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Model Number: | 6Y0016 Bulldozer Cutting Edges |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Packaging Details: | plywood pallet |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| Product Name: | 6Y0016 Bulldozer Cutting Edges | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size: | DBF 45X406X1028 |
| Part Number: | 6Y0016 | Weight: | 135.8KG |
| Highlight: | DBF Bulldozer Cutting Edges,6Y0016 DBF Bulldozer Cutting Edges,Heavy Duty DBF Bulldozer Cutting Edges |
||
Product Description
The 6Y0016 Bulldozer Cutting Edge is a heavy-duty DBF (Double Bevel Flat) blade designed for crawler dozers and earthmoving equipment operating in demanding conditions.
Installed in the center blade position, the 6Y0016 Cutting Edge features a robust design with dimensions of 45×406×1028 mm, 9 bolt holes, and a weight of 135.8 KG. It provides excellent protection for the dozer blade while improving cutting efficiency, grading performance, and wear resistance.
The DBF reversible profile helps maximize wear material utilization by allowing balanced wear distribution, making it suitable for heavy-duty applications such as construction, mining, quarrying, and large-scale earthmoving.
- MTW Part Number: 6Y0016
- Product Type: Bulldozer Cutting Edge
- Blade Position: Center
- Blade Type: DBF (Double Bevel Flat)
- Quantity Required: 2
- Thickness: 45 mm
- Width: 406 mm
- Length: 1028 mm
- Total Holes: 9
- Weight: 135.8 KG
- Heavy-Duty Wear Protection
- Reversible Cutting Edge Design
- High Impact Resistance
- Excellent Abrasion Resistance
- Long Service Life
- Reliable Replacement Quality
| Parameter | Specification |
|---|---|
| MTW Part Number | 6Y0016 |
| Product | Bulldozer Cutting Edge |
| Blade Position | Center |
| Qty Required | 2 |
| Blade Type | DBF |
| Thickness | 45 mm |
| Width | 406 mm |
| Length | 1028 mm |
| Total Holes | 9 |
| Description | DBF 45×406×1028 |
| Weight | 135.8 KG |
The 6Y0016 DBF Bulldozer Cutting Edge is suitable for:
- Crawler Bulldozers
- Heavy Earthmoving Equipment
- Construction Machinery
- Mining Equipment
- Quarry Operations
- Land Leveling Applications
Typical working conditions:
- Heavy soil pushing
- Rock and gravel movement
- Site preparation
- Road construction
- Large-scale earthmoving projects
- Protects the main blade from abrasion and impact
- Improves cutting and grading efficiency
- Extends blade service life
- Reduces maintenance frequency
- Provides stable performance under heavy loads
- Maximizes wear material usage
- Helps reduce operating costs
- High-strength wear-resistant steel
- Accurate hole positioning and dimensions
- Designed for severe working environments
- Excellent impact and abrasion resistance
- Reliable fitment and replacement performance
- Cost-effective solution for blade maintenance
Q1: What is the 6Y0016 Cutting Edge used for?
The 6Y0016 Cutting Edge is installed on the center section of bulldozer blades to provide wear protection and improve cutting performance during heavy earthmoving operations.
Q2: What are the specifications of 6Y0016?
The 6Y0016 features a DBF 45×406×1028 mm design with 9 holes and a weight of 135.8 KG.
Q3: What does DBF mean?
DBF stands for Double Bevel Flat, a reversible cutting edge design that provides balanced wear and extended service life.
Q4: Why are bulldozer cutting edges important?
Cutting edges protect the main blade from direct contact with abrasive materials, improving machine efficiency and reducing blade replacement costs.
