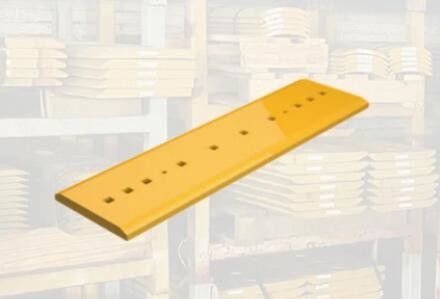

9J3751 Heavy Duty Center Cutting Edge DBF 35×330×1216mm Bulldozer Blade 103.7KG
Product Details:
| Place of Origin: | China |
| Brand Name: | MTW |
| Model Number: | 9J3751 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Packaging Details: | plywood pallet |
| Delivery Time: | 6-8 weeks |
|
Detail Information |
|||
| Product Name: | 9J3751 Heavy Duty Center Cutting Edge DBF 35×330×1216mm Bulldozer Blade 103.7KG | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size: | DBF 35×330×1216mm |
| Part Number: | 9J3751 | Weight: | 103.7KG |
| Highlight: | Carbide Impregnated Bulldozer Cutting Edge,9J3751 Bulldozer Cutting Edge,Boron Steel Bulldozer Cutting Edge |
||
Product Description
The 9J3751 Cutting Edge is a heavy-duty DBF (Double Bevel Flat) bulldozer cutting edge engineered for demanding earthmoving, mining, and construction applications. Designed for installation in the center blade position, it delivers outstanding wear resistance, impact strength, and long-lasting cutting performance.
With dimensions of 35*330*1216 mm, 10 mounting holes, and a weight of 103.7 KG, the 9J3751 Cutting Edge provides superior blade protection while maintaining efficient grading, dozing, and material movement. The double bevel flat profile allows for even wear distribution, helping extend the service life of both the cutting edge and the blade.
- MTW Part Number: 9J3751
- Product Type: Bulldozer Cutting Edge
- Blade Position: Heavy Duty Center
- Blade Type: DBF (Double Bevel Flat)
- Quantity Required: 2
- Thickness: 35 mm
- Width: 330 mm
- Length: 1216 mm
- Total Holes: 10
- Weight: 103.7 KG
- Heavy-Duty Wear Protection
- High Impact Resistance
- Excellent Abrasion Resistance
- Long Service Life
- OEM Replacement Quality
| Parameter | Specification |
|---|---|
| MTW Part Number | 9J3751 |
| Product | Bulldozer Cutting Edge |
| Blade Position | Heavy Duty Center |
| Qty Required | 2 |
| Blade Type | DBF |
| Thickness | 35 mm |
| Width | 330 mm |
| Length | 1216 mm |
| Total Holes | 10 |
| Description | DBF 35*330*1216 |
| Weight | 103.7 KG |
| Recommended Bolts | 6 * 8J2928 |
| Recommended Nuts | 6 * 2J3507 |
The 9J3751 Heavy Duty Center Cutting Edge is suitable for:
- Bulldozers
- Heavy Earthmoving Equipment
- Construction Machinery
- Mining Equipment
- Quarry Operations
- Land Clearing and Site Preparation
Typical working conditions:
- Heavy earthmoving
- Rock and gravel handling
- Road construction
- Mining operations
- High-abrasion environments
- Protects the bulldozer blade from excessive wear
- Improves cutting and grading efficiency
- Extends blade service life
- Reduces maintenance frequency
- Delivers reliable performance under heavy loads
- Minimizes equipment downtime
- Lowers long-term operating costs
- Manufactured from premium wear-resistant steel
- Precision-machined dimensions for accurate fitment
- Excellent resistance to abrasion and impact
- Designed for demanding heavy-duty applications
- Consistent quality and dependable performance
- Cost-effective OEM replacement solution
Q1: What is the 9J3751 Cutting Edge used for?
The 9J3751 Cutting Edge is installed in the center position of a bulldozer blade to protect the blade structure and provide efficient cutting and grading performance.
Q2: What are the specifications of the 9J3751 Cutting Edge?
The 9J3751 features a DBF 35*330*1216 mm design with 10 mounting holes and a weight of 103.7 KG.
Q3: What fasteners are recommended for installation?
The recommended hardware for the 9J3751 Cutting Edge includes 6 * 8J2928 bolts and 6 * 2J3507 nuts.
Q4: What are the advantages of a DBF cutting edge?
The Double Bevel Flat (DBF) profile provides balanced wear on both sides, extending service life, improving cutting performance, and reducing replacement costs.
