MTW Bolt On Cutting Edges ISO Loaders 1099122FHA Alloy X14 Steel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Certification: | ISO |
| Model Number: | Loaders |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | wooden plate |
| Delivery Time: | 25 days |
|
Detail Information |
|||
| Product Name: | Half Arrow | Material: | Cast Alloy |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size(in): | 1.750x15x36.118 |
| Part Number: | 1099122FHA | Weight: | 109.09kg |
| High Light: | MTW bolt on cutting edges,ISO Loaders bolt on cutting edges,1099122FHA |
||
Product Description

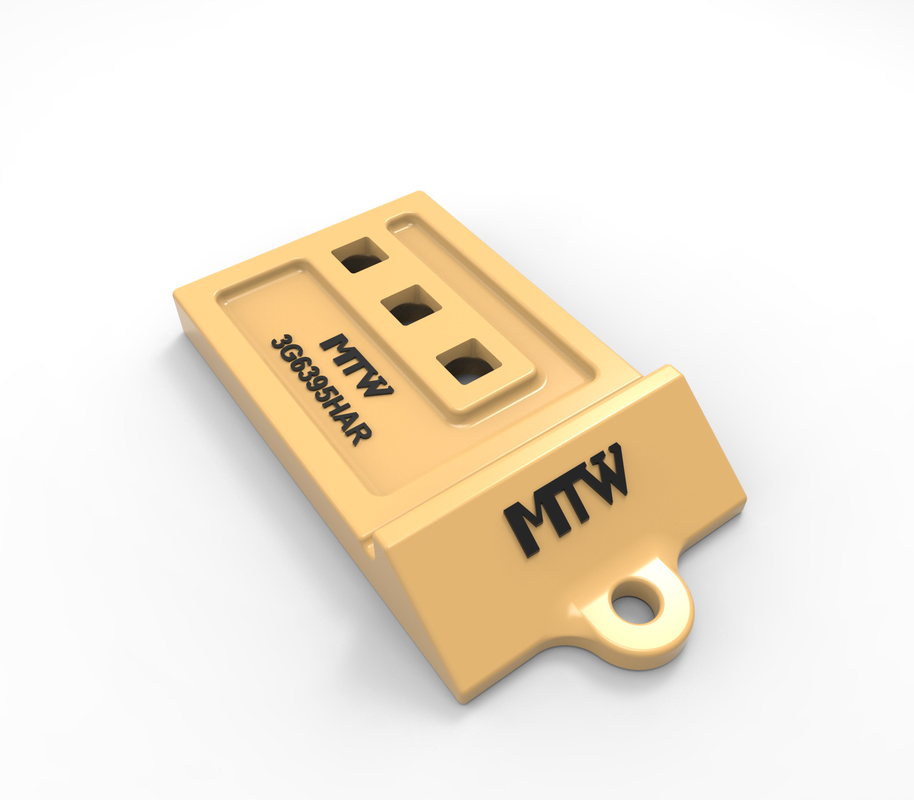

Half Arrow
description of Half Arrow
MTW half arrow edges and segments are designed and built to perform using our HighSpec Alloy X14 steel for excellent wear characteristics and superior impact resistance. Half Arrow Edges are used to replace the standard double bevel design commonly used on loaders when no tooth and adapter options are installed. Segments are placed between loader teeth to protect the base edge of the bucket. The half arrow design offers enhanced protection for the edge and bevel. Combining half arrow shaped segments or blades with MTW base edge covers completely protects the base edge from abrasion.
| Part Number | Blade Position | Qty Req | Bit Type | Thick Width Length(in) | Total Holes | Weight |
| 1099122FHA | Half Arrow Center RH | 1 | HA | 1.750x15x36.118 | 5 |
109.09kg |
