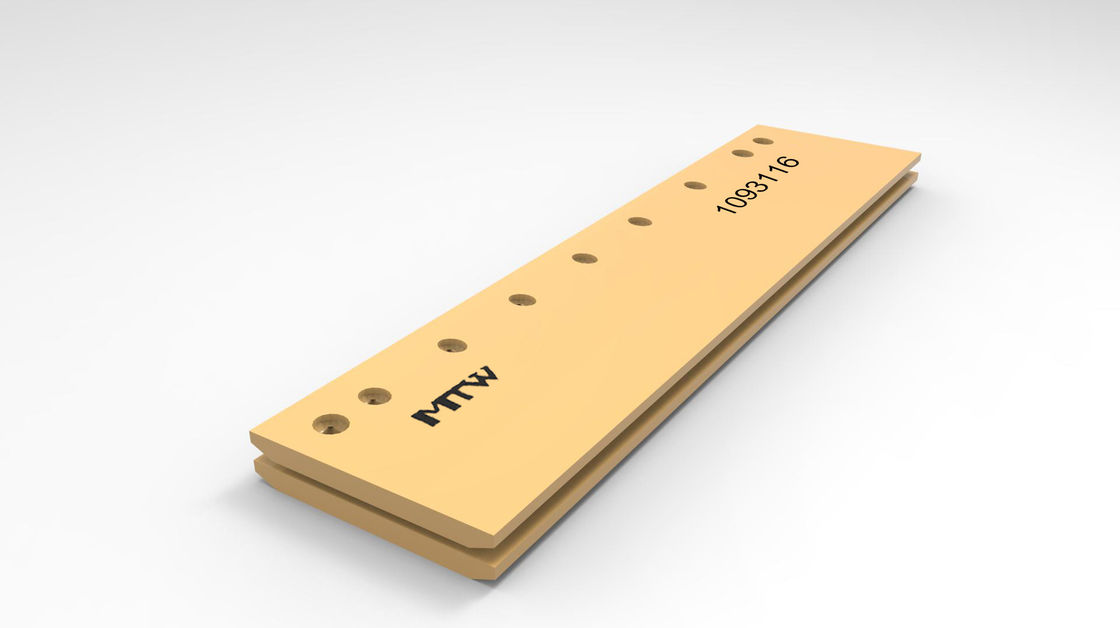

1093116 DBF Bulldozer Cutting Edge 45×330×1216mm Heavy Duty Blade 132.2KG
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Model Number: | 1093116 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Packaging Details: | Plywood Pallet |
| Delivery Time: | 6-8 Weeks |
|
Detail Information |
|||
| Product Name: | 1093116 DBF Bulldozer Cutting Edge 45×330×1216mm Heavy Duty Blade 132.2KG | Part Number: | 1093116 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size: | 45×330×1216mm |
| Material: | Boron Steel MTW500 Or Manganese Steel MTW400 | Weight: | 132.2KG |
| Highlight: | DBF motor blade,Qty Req motor blade,1093116 |
||
Product Description
The 1093116 Bulldozer Cutting Edge is a heavy-duty DBF (Double Bevel Flat) blade designed for crawler bulldozers operating in demanding construction, mining, and earthmoving environments. Manufactured from high-quality wear-resistant steel, it provides excellent abrasion resistance, impact strength, and long service life.
Featuring dimensions of 45×330×1216 mm, 9 mounting holes, and a weight of 132.2 KG, the 1093116 Cutting Edge offers superior blade protection while maintaining efficient cutting and grading performance. The DBF reversible profile ensures balanced wear, maximizing material utilization and reducing maintenance costs.
- MTW Part Number: 1093116
- Product Type: Bulldozer Cutting Edge
- Blade Type: DBF (Double Bevel Flat)
- Thickness: 45 mm
- Width: 330 mm
- Length: 1216 mm
- Total Holes: 9
- Weight: 132.2 KG
- Heavy-Duty Wear Protection
- Double Bevel Reversible Design
- Excellent Abrasion Resistance
- High Impact Strength
- Extended Service Life
- OEM Replacement Quality
| Parameter | Specification |
|---|---|
| MTW Part Number | 1093116 |
| Product | Bulldozer Cutting Edge |
| Blade Type | DBF |
| Thickness | 45 mm |
| Width | 330 mm |
| Length | 1216 mm |
| Total Holes | 9 |
| Description | DBF 45×330×1216 |
| Weight | 132.2 KG |
The 1093116 DBF Bulldozer Cutting Edge is suitable for:
- Crawler Bulldozers
- Heavy Earthmoving Equipment
- Construction Machinery
- Mining Equipment
- Quarry Operations
- Land Clearing and Site Preparation
Typical working conditions include:
- Heavy earthmoving
- Rock and gravel handling
- Road construction
- Mining operations
- High-abrasion environments
- Protects the bulldozer blade against severe wear
- Improves cutting and grading efficiency
- Extends blade service life
- Reduces maintenance frequency
- Delivers reliable performance under heavy-duty conditions
- Helps minimize machine downtime
- Lowers long-term maintenance costs
- Manufactured from premium wear-resistant steel
- Precision-machined dimensions for accurate installation
- Excellent resistance to abrasion and impact
- Designed for continuous heavy-duty operation
- Consistent quality and dependable performance
- Cost-effective OEM replacement solution
The 1093116 Cutting Edge is designed to protect the bulldozer blade while improving cutting efficiency and wear resistance in heavy-duty earthmoving operations.
The 1093116 features a DBF 45×330×1216 mm profile with 9 mounting holes and a weight of 132.2 KG.
The Double Bevel Flat (DBF) profile provides reversible installation, balanced wear distribution, longer service life, and reduced operating costs.
It is ideal for bulldozers working in construction, mining, quarrying, road building, and other high-abrasion earthmoving environments.
