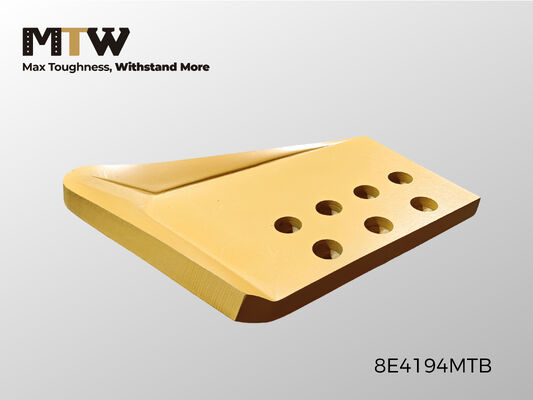

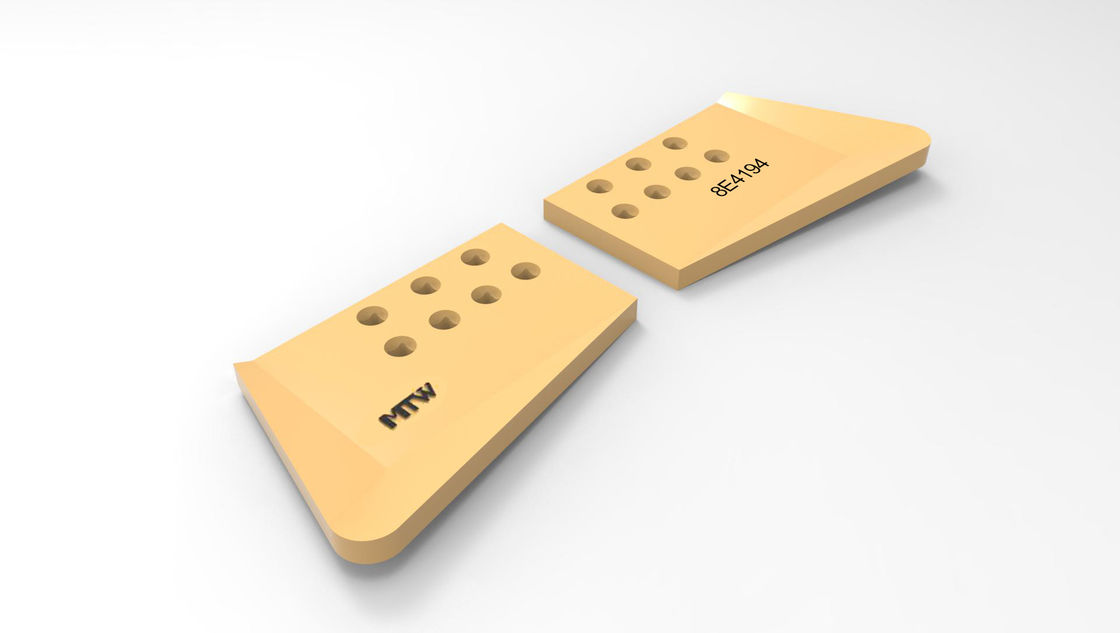

8E4194 HCEB Hot Cup End Bit 40×403×597 7 Holes Heavy Duty Bulldozer End Bit
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Model Number: | Bulldozer End Bit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | wooden plate |
| Delivery Time: | 25 days |
|
Detail Information |
|||
| Product Name: | 8E4194 Bulldozer End Bit | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size(mm): | 40x403x597 |
| Part Number: | 8E4194 | Weight: | 57.6kg |
| Highlight: | Boron Bulldozer End Bit,HCEB Bulldozer End Bit,8E4194 |
||
Product Description
The 8E4194 Hot Cup End Bit is a heavy-duty bulldozer blade wear component designed to provide superior corner protection and extended service life in demanding earthmoving, mining, and construction applications. Featuring a Heavy Duty Cutting Edge Bit (HCEB) design, this end bit delivers excellent wear resistance, improved blade performance, and reduced maintenance costs.
Manufactured from premium heat-treated boron steel or alloy steel, the 8E4194 HCEB End Bit is engineered to withstand severe abrasion and impact conditions. With dimensions of 40×403×597 mm, a 7-hole mounting configuration, and a weight of 57.6 kg, it offers reliable performance and long-lasting durability in the toughest operating environments.
- Part Number: 8E4194
- Hot Cup End Bit Design
- HCEB (Heavy Duty Cutting Edge Bit)
- Heavy-Duty 40 mm Thickness
- High-Strength Heat-Treated Alloy Steel
- Superior Wear and Impact Resistance
- Precision-Machined 7-Hole Configuration
- OEM Quality Replacement Part
- Long Service Life in Harsh Conditions
| Parameter | Specification |
|---|---|
| Part Number | 8E4194 |
| Blade Position | Hot Cup End Bit |
| Qty Required | 1 |
| Bit Type | HCEB |
| Thickness | 40 mm |
| Width | 403 mm |
| Length | 597 mm |
| Total Holes | 7 |
| Weight | 57.6 kg |
| Material | Heat-Treated Boron Steel / Alloy Steel |
| Application | Bulldozer Blade Wear Parts |
The 8E4194 HCEB Hot Cup End Bit is suitable for:
- Bulldozers
- Track-Type Tractors
- Mining Equipment
- Quarry Machinery
- Construction Equipment
- Land Clearing Operations
- Heavy Earthmoving Projects
Designed to protect blade corners and improve cutting performance in high-abrasion environments.
- Extends blade service life
- Protects blade corners from excessive wear
- Reduces maintenance and replacement costs
- Improves grading and dozing efficiency
- Enhances machine productivity
- Performs reliably under severe impact conditions
- OEM-quality Ground Engaging Tools (GET)
- Premium heat-treated wear-resistant steel
- Advanced manufacturing technology
- Precision hole alignment for easy installation
- Strict quality control standards
- Factory-direct pricing
- Worldwide shipping and OEM support
A: The dimensions are 40 mm thickness × 403 mm width × 597 mm length.
A: The end bit features 7 mounting holes for secure installation.
A: The unit weight is 57.6 kg.
A: HCEB stands for Heavy Duty Cutting Edge Bit, designed for maximum wear resistance and extended service life in severe operating conditions.
