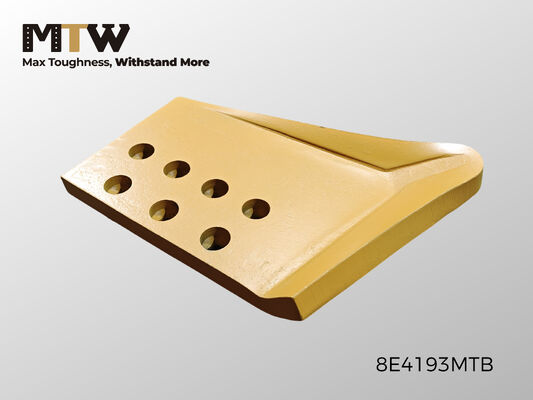

8E4193 HCEB Hot Cup End Bit MTW400 40×403×597 7 Holes Heavy Duty Bulldozer End Bit
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MTW |
| Model Number: | Bulldozer End Bit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | wooden plate |
| Delivery Time: | 25 days |
|
Detail Information |
|||
| Product Name: | 8E4193 HCEB Hot Cup End Bit MTW400 40×403×597 7 Holes Heavy Duty Bulldozer End Bit | Material: | Boron Steel MTW500 Or Manganese Steel MTW400 |
|---|---|---|---|
| Color: | Yellow Or Customer Designed | Size(mm): | 40x403x597 |
| Part Number: | 8E4193 | Weight: | 57.6kg |
| Highlight: | Hot Cup HCEB Bulldozer End Bit,MTW 400 Bulldozer End Bit,8E4193 |
||
Product Description
The 8E4193 Hot Cup End Bit is a premium heavy-duty bulldozer wear component designed to provide maximum blade corner protection and extended service life in severe mining, quarrying, and earthmoving applications. Featuring a Heavy Duty Cutting Edge Bit (HCEB) profile, this end bit delivers outstanding abrasion resistance, impact strength, and operational reliability.
Manufactured from premium heat-treated boron steel and engineered for high-performance dozing operations, the 8E4193 HCEB End Bit is ideal for protecting blade corners against excessive wear while maintaining optimal cutting efficiency. With dimensions of 40×403×597 mm, a 7-hole mounting pattern, and a weight of 57.6 kg, it offers OEM-quality fit and durability in the toughest working environments.

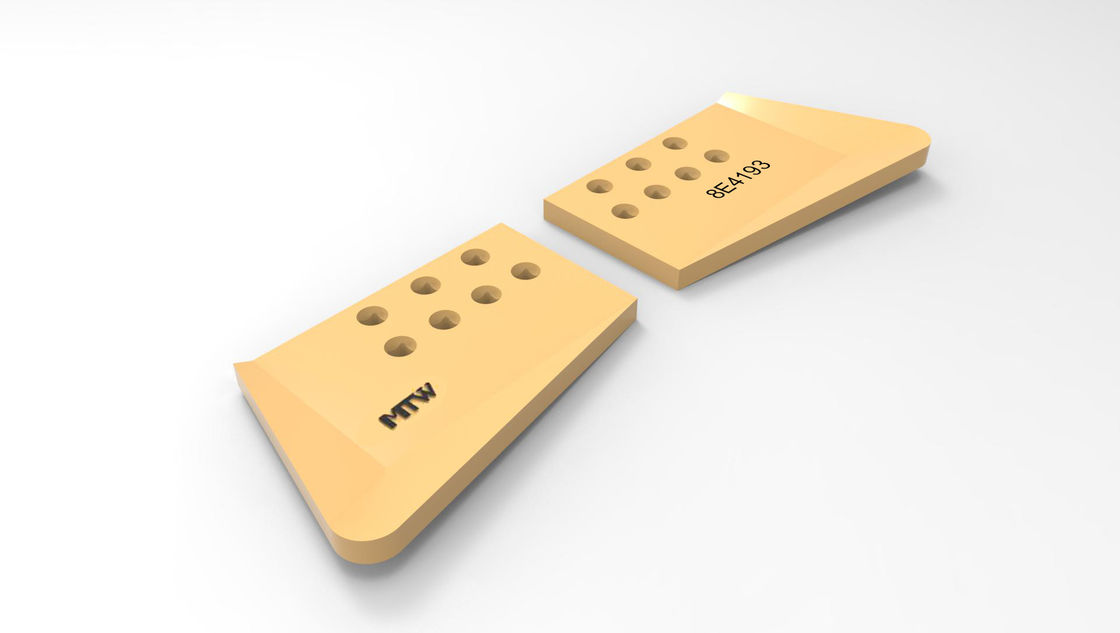

The 8E4193 is commonly used as the matching counterpart to 8E4194, forming a complete Hot Cup end bit set for heavy-duty bulldozer blades.
- Part Number: 8E4193
- MTW400 Hot Cup End Bit
- HCEB (Heavy Duty Cutting Edge Bit)
- Heavy-Duty 40 mm Thick Design
- High Wear Resistance and Impact Strength
- Heat-Treated Boron Steel Construction
- Precision-Machined 7-Hole Configuration
- OEM Quality Replacement Wear Part
- Long Service Life in Severe Applications
| Parameter | Specification |
|---|---|
| Part Number | 8E4193 |
| Blade Position | Hot Cup End Bit |
| Qty Required | 1 |
| Bit Type | HCEB |
| Thickness | 40 mm |
| Width | 403 mm |
| Length | 597 mm |
| Total Holes | 7 |
| Weight | 57.6 kg |
| Series | MTW400 |
| Material | Heat-Treated Boron Steel / Alloy Steel |
| Application | Bulldozer Blade Wear Parts |
The 8E4193 HCEB Hot Cup End Bit is suitable for:
- Bulldozers
- Track-Type Tractors
- Mining Equipment
- Quarry Machinery
- Construction Equipment
- Land Clearing Projects
- Heavy Earthmoving Operations
Designed for extreme wear environments requiring maximum durability and blade protection.
- Extends blade corner service life
- Protects cutting edges from premature wear
- Improves bulldozer productivity
- Reduces maintenance downtime
- Lowers wear part replacement costs
- Provides superior performance in abrasive materials
- OEM-quality Ground Engaging Tools (GET)
- Premium boron steel construction
- Advanced heat-treatment technology
- Excellent hardness and toughness balance
- Precision manufacturing and fitment
- Competitive factory-direct pricing
- Global shipping and OEM services
A: The dimensions are 40 mm thickness × 403 mm width × 597 mm length.
A: The end bit features 7 precision-machined mounting holes.
A: The unit weight is 57.6 kg.
A: The matching counterpart is 8E4194, commonly supplied as a complete Hot Cup end bit set.
