4T8091 Bolt-On Cutting Edge DBF 25×344×158 2 Holes Loader Cutting Edge Segment
Product Details:
| Place of Origin: | China |
| Brand Name: | MTW |
| Model Number: | 4T8091 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Packaging Details: | plywood pallet |
| Delivery Time: | 6-8 weeks |
| Payment Terms: | T/T,L/C,D/P |
|
Detail Information |
|||
| Product Name: | 4T8091 Bolt-On Cutting Edge | Part Number: | 4T8091 |
|---|---|---|---|
| Size: | 25×344×158 | Color: | Yellow Or Customized |
| Highlight: | style bolt on cutting edges,Loader cutting edges with warranty,4T8091M bolt on loader edges |
||
Product Description

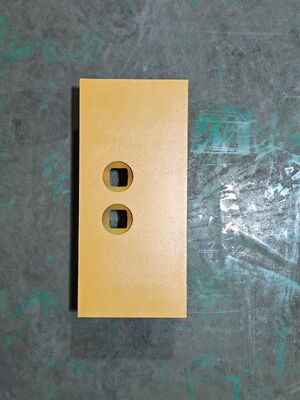

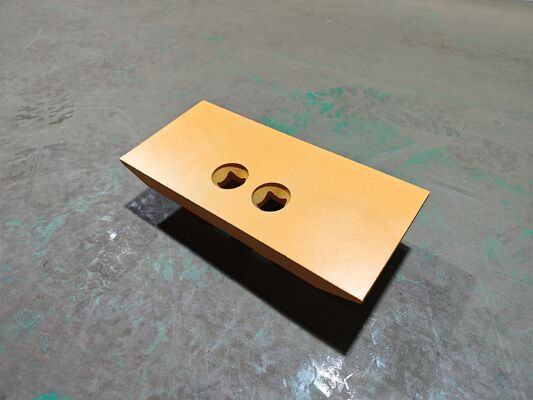

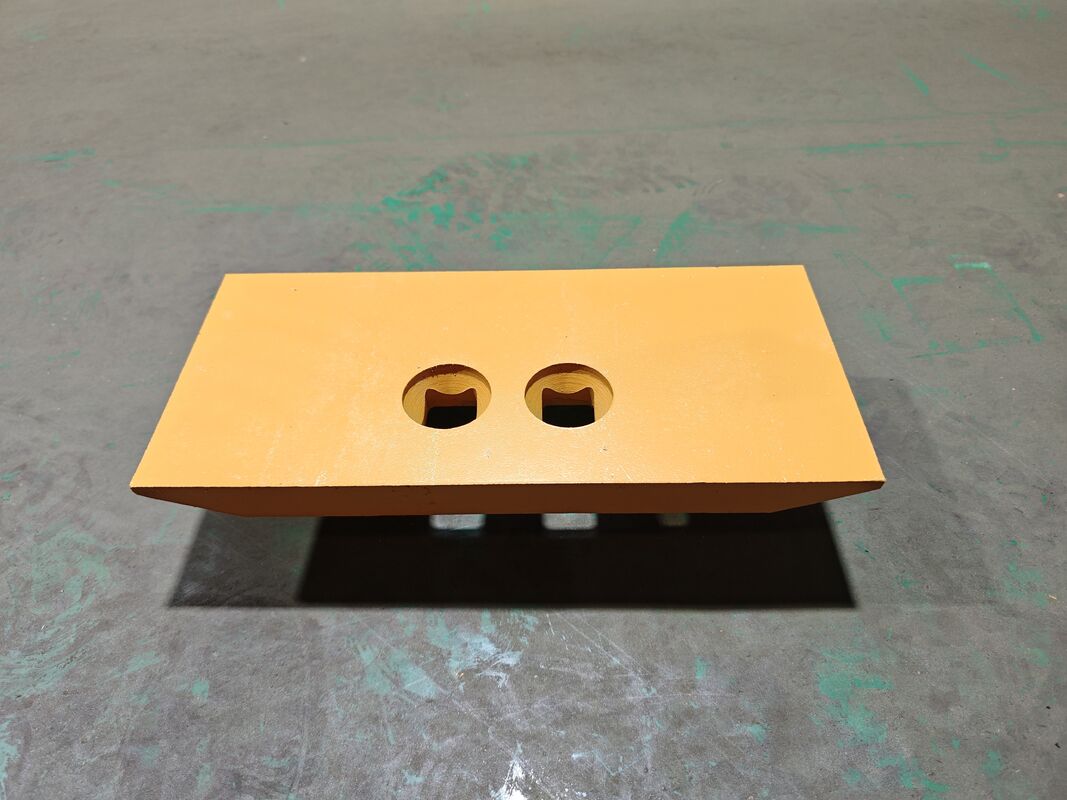

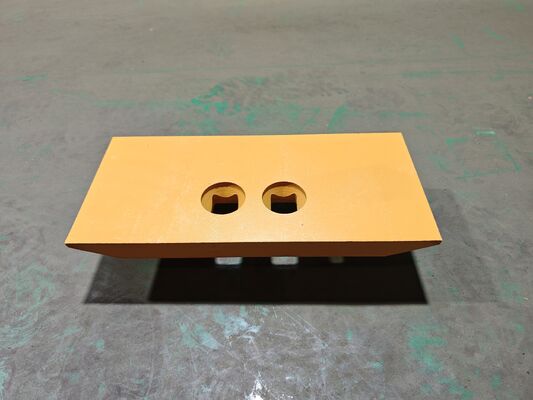

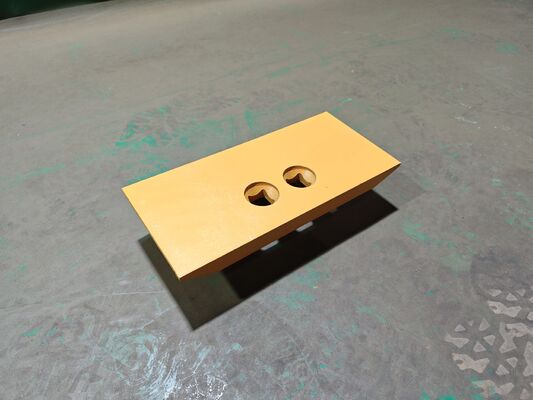

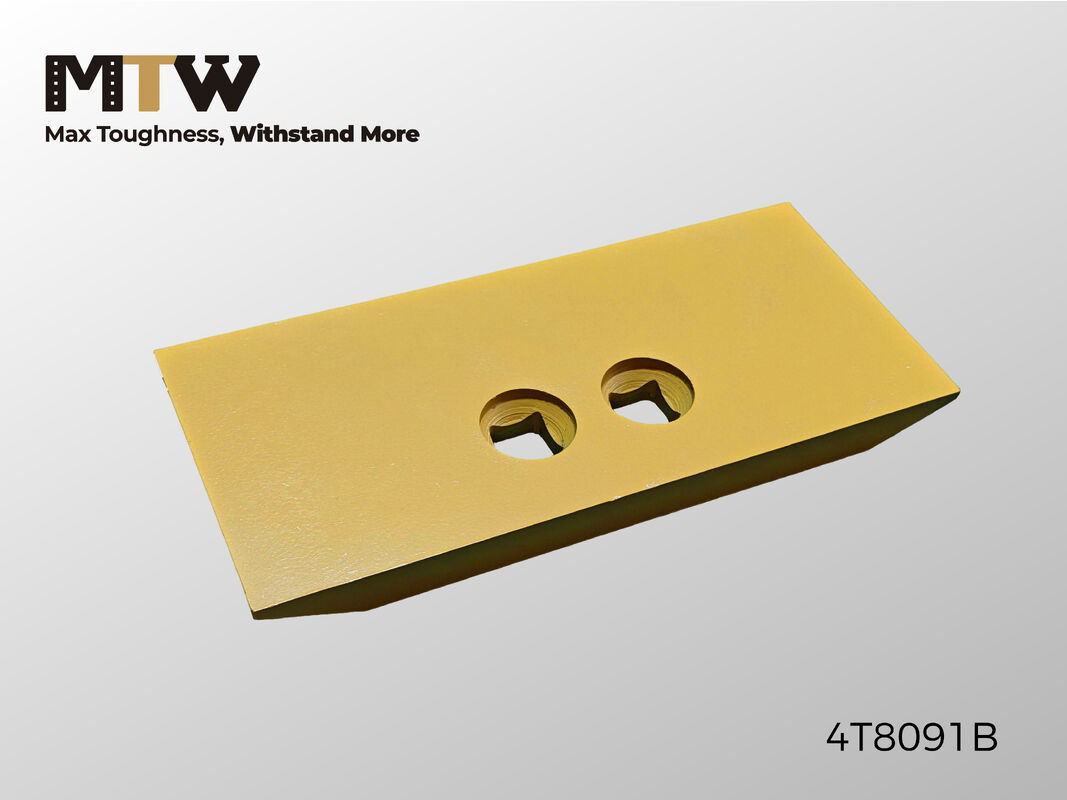

The 4T8091 Bolt-On Cutting Edge is a compact wear-resistant edge segment designed for loader buckets and material handling equipment operating in construction, quarrying, mining, and aggregate applications. Installed on the bucket edge, this bolt-on segment helps improve bucket protection, maintain cutting performance, and extend service life.
Featuring a Double Bevel Flat (DBF) profile and a 2-hole mounting configuration, the 4T8091M Cutting Edge provides reliable wear protection and easy replacement. With dimensions of 25×344×158 mm, it is ideal for maintaining bucket efficiency while reducing downtime and maintenance costs.
- Part Number: 4T8091
- Bolt-On Cutting Edge
- DBF (Double Bevel Flat) Design
- 2-Hole Mounting Configuration
- Enhanced Bucket Edge Protection
- Excellent Wear Resistance
- Reliable Performance in Harsh Conditions
- Easy Installation and Replacement
- OEM Quality Replacement Part
- Extended Service Life
| Parameter | Specification |
|---|---|
| Part Number | 4T8091 |
| Position | Bolt-On Edge |
| Blade Type | DBF |
| Thickness | 25 mm |
| Width | 344 mm |
| Length | 158 mm |
| Total Holes | 2 |
| Bolt | 1J5607 |
| Nut | 2J3507 |
The 4T8091 Bolt-On Cutting Edge is suitable for:
- Wheel Loaders
- Loader Buckets
- Aggregate Handling Equipment
- Mining Operations
- Quarry Applications
- Construction Projects
- Material Handling Operations
Designed to protect bucket edges and improve wear life in demanding environments.
- Protects bucket cutting edges from wear
- Extends bucket service life
- Improves loading efficiency
- Reduces maintenance costs
- Minimizes equipment downtime
- Quick and easy replacement
- OEM-quality wear parts
- Precision manufacturing
- Excellent fit and performance
- Consistent product quality
- Competitive factory-direct pricing
- Worldwide shipping available
- OEM and custom services supported
The 4T8091M helps protect loader bucket edges from wear and abrasion while maintaining efficient loading performance.
The dimensions are 25 mm thickness, 344 mm width, and 158 mm length.
The cutting edge features a 2-hole mounting configuration.
The recommended mounting hardware includes 1J5607 bolts and 2J3507 nuts.
- 4T8091 Bolt-On Cutting Edge
- 4T8316 End Cutting Edge
- 4T8317 Flat Grader Blade
- Loader Cutting Edges
- Bucket Protection Segments
- Ground Engaging Wear Parts
For parts not listed on above page, please send to sales@mtw-blades.com for more information
